@goodwaygroup/lib-hapi-good-tracer

This plugin will read, generate and track a tracer header on `request`s that is then injected into the `Good` log stream via an injected `tracer` object.

Readme Card

CircleCI Coverage Status npm downloads install size

Usage

This plugin will read, generate and track a tracer header on requests that is then injected into the Good log stream via an injected tracer object.

{
  "tracer": {
    "uuid": "STRING",
    "depth": "INTEGER"
  }
}

The depth value provides insight into the hierarchy chain of requests. Combining the uuid + depth + timestamp of a request will provide a mapping to the request chain.

NOTE: This module uses the debug logging tool. Use DEBUG=hapi:plugins:good-tracer to view debug logging.

$ npm install -S @goodwaygroup/lib-hapi-good-tracer

In your index.js for the Hapi server, register the plugin:

await server.register({
    plugin: require('@goodwaygroup/lib-hapi-good-tracer'),
    options: {
        traceUUIDHeader: 'x-custom-trace-uuid', // optional defaults to 'x-gg-trace-uuid'
        traceDepthHeader: 'x-custom-trace-depth', // optional defaults to 'x-gg-trace-depth'
        enableStatsRoute: true, // optional defaults to false
        baseRoute: '/debug', // optional defaults to ''
        cache: {
            stdTTL: 60 // optional defaults to 3600 seconds
        },
        axios: {
            main: { // defaults to {}
                headers: {
                    common: {
                        'user-agent': 'service-yolo'
                    }
                }
            }
        }
    }
});

// add stream to Good log reporters
const logReporters = {
    console: [
        server.plugins.goodTracer.GoodSourceTracer, // Stream Transform that will inject the tracer object
        {
            module: 'good-squeeze',
            name: 'Squeeze',
            args: [{
                response: { exclude: 'healthcheck' },
                log: '*',
                request: '*',
                error: '*',
                ops: '*'
            }]
        }, {
            module: 'good-squeeze',
            name: 'SafeJson'
        }, 'stdout']
};

await server.register({
    plugin: Good,
    options: {
        reporters: logReporters
    }
});

axios Client Route Usage

Passing axios plugin or route configuration will create Axios instances on the request. Use these instances to have the trace headers injected. This will allow for chained request tracing.

await server.register({
    plugin: require('@goodwaygroup/lib-hapi-good-tracer'),
    options: {
        axios: {
            main: {}
        }
    }
});

const routes = [{
    method: 'GET',
    path: '/proxy/google',
    config: {
        tags: ['proxy'],
    },
    handler: async (request) => {
        const { axios } = request.plugins.goodTracer;
        return axios.main.get('https://google.com')
    }
}];

exports.routes = server => server.route(routes);

And with Route level configuration

const routes = [{
    method: 'GET',
    path: '/proxy/google',
    config: {
        tags: ['proxy'],
        plugins: {
            goodTracer: {
                axios: {
                    inroute: {}
                }
            }
        }
    },
    handler: async (request) => {
        const { axios } = request.plugins.goodTracer;
        return axios.inroute.get('https://google.com')
    }
}];

exports.routes = server => server.route(routes);

Request Chain Hierarchy

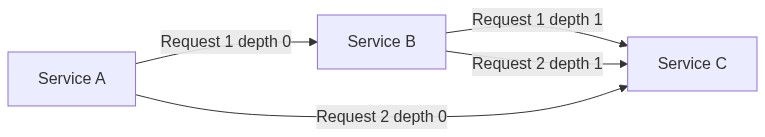

Consider The following request chain:

The depth value provides insight into the hierarchy chain of requests. Combining the uuid + depth + timestamp of a request will provide a mapping to the request chain.

In-Memory Cache

This plugin uses an in-memory cache that is used to pass the tracer information between the server, request and logger.

There is a global TTL per object that is reset on each get of the object.

If an object is stale for the length of the TTL, it will be culled.

There is a max number of keys that can be active at any time to help with memory concerns.

The postResponseCleanup option is on by default. This will delete the cached data associated with the request on a delay (default of 1000 ms).

See node-cache for available settings.

Configuration Options

When passing a configuration option, it will overwrite the defaults.

  • traceUUIDHeader: defaults to x-gg-trace-uuid. The header that is used for the Trace ID
  • traceDepthHeader: defaults to x-gg-trace-depth. The header that is used for the Depth ID
  • enableStatsRoute: defaults to false. Publish a route to /good-tracer/stats that exposes the current metrics for node-cache statistics.
  • baseRoute: defaults to ''. Prepends to the /good-tracer/stats route.
    • Example: baseRoute = /serivce-awesome results in /serivce-awesome/good-tracer/stats
  • postResponseCleanup: (Boolean | Object): defaults to true. If set to anything, the feature is enabled.
    • delay: Number: defaults to 1 second. The amount of time to wait after reponse to delete a key from the cache. You can pass decimal values for sub-second times.
  • axios: Configured axios instances provided to each request
    • [key: string]: (Boolean | Object): if given, defaults to {}. Pass in any valid axios config options.
  • cache: internal memory cache settings. See node-cache configuration
    • stdTTL: default 3600 seconds (1 hour)
    • checkperiod: default 60 seconds
    • maxKeys: default -1 (no limit)
    • useClones: default false
    • extendTTLOnGet: This feature will reset the TTL to the global TTL when a successful get occurs. This will extend the life of an item in the cache as a result. default true

Route Configuration Options

Route level plugin configuration overwrites the options passed to the plugin.

  • axios: Configured axios instances provided to each request
    • [key: string]: (Boolean | Object): if given, defaults to {}. Pass in any valid axios config options.

Running Tests

To run tests, just run the following:

npm test

All commits are tested on CircleCI

Linting

To run eslint:

npm run lint

To auto-resolve:

npm run lint:fix

Contributing

Please read CONTRIBUTING.md for details on our code of conduct, and the process for submitting pull requests to us.

Versioning

We use milestones and npm version to bump versions. We also employ git-chglog to manage the CHANGELOG.md. For the versions available, see the tags on this repository.

To initiate a version change:

npm version minor

Authors

  • Derek Smith - Initial work - @clok

See also the list of contributors who participated in this project.

License

This project is licensed under the MIT License - see the LICENSE file for details
